Steel 105 X 1.2 X 16mm Iso9001 4 Inch Metal Cutting Discs

Brand Name : Grassland

Model Number : 100X1.0X16

Certification : ISO9001，ISO14001 and MPA EN12413

Place of Origin : China

MOQ : 10000

Price : US$0.17-0.18 per piece

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 thousand PCS per day

Delivery Time : 30-60 Days

Packaging Details : shrink wrap-inner box-carton-enhanced pallet

abrasive : aluminium oxide and other materials

color : Black

Hardness : R

Max working speed : 80 M/S

Grit size : 46#,60#

Iterm NO. : FAC1001010

Application : Ferrous metal and all steel cutting

Bonding Agent : Resin

Arbor Size : 5/8 in

Disc type : Flat type

Contact Now

Grassland 4"105 x 1.2 x 16mm Cutting Disc for Metal Cutting





Specifications:

Material: Resin

Color: BLACK as pictures show

Diameter: 105mm/ 4"

Thickness: 1.2mm

Hole Size: 16mm/ 5/8"

Max Operating Speed: 15300 RPM above

Use: Angle Grinder



Features:



Premium quality metal slitting discs.

Ideal for all grades of steel.

For sheet metal, fabrication and car body work.

Thin profile cuts faster and reduces metal wastage.

Complies with both the EN 12413 and OSA (Organization for the Safety of Abrasives) standards for enhanced safety



Metal Cutting Discs are manufactured using with tough aluminum oxide, heat-treated aluminum oxide , monocrystalline fused alumina (SA) or silicon carbide abrasive grain and fibreglass reinforcing and resin bonded to provide both safety and optimum cutting performance. Thin Discs with a 1.2mm thickness permit fine cutting where necessary on stainless steel and high grade metals,extremely fast cutting with sharpness ,minimal vibration for more comfortable working,



They must never be used for grinding and must always be presented to the workpiece at an angle of 90º.

For use with a variety of machines, mini-grinders to stationary cutting-off machines.



Applications

They are commonly used in building, shipbuilding, metal, foundry, engineering, chemical and other industries as well as in smaller workshops. They can be used on portable electrically or pneumatically driven portable horizontal/vertical spindle grinders.


Cutting wheel information:
Product Name 100 mm cutting disk Abrasive Aluminum oxide
Hardness R Grade Net Standard Reinforced fiberglass
Max working speed

80 m/s



 OEM Service Acceptable
R.P.M 15300 Package

Kraft Carton and Pallet


Grit size 46#,60# HS Code 68042210

Certificate



MPA EN12413,ISO9001



 Loading Port Tianjin or else



Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for metal 80m/s FAC0751095 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FAC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FAC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FAC1002016 T42-100X2.0X16MM PC 400 15/16 27.7*22*22
FAC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FAC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FAC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FAC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FAC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FAC1252022 T41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
FAC1501622 T41-150X1.6X22.2MM PC 200 12/13 32*32*11.7
FAC1502022 T41-150X2.0X22.2MM PC 200 16.5/17.5 32*32*13.2
FAC1801622 T41-180X1.6X22.2MM PC 200 20/21 37.5*19*22.7
FAC1802022 T41-180X2.0X22.2MM PC 100 10.5/11 37.5*19*13.2
FAC2301622 T41-230X1.6X22.2MM PC 50 8/9 24*24*11.7
FAC2302022 T41-230X2.0X22.2MM PC 100 18.5/19.5 24*24*25.7





Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for inox/Alu 80m/s FSC0751009 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FSC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FSC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FSC1002016 T41-100X2.0X16MM PC 400 15/16 29.7*22*22
FSC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FSC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FSC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FSC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FSC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FSC1252022 T41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
FSC1501622 T41-150X1.6X22.2MM PC 200 12/13 32*32*11.7
FSC1502022 T41-150X2.0X22.2MM PC 200 16.5/17.5 32*32*13.2
FSC1801622 T41-180X1.6X22.2MM PC 200 20/21 37.5*19*22.7
FSC1802022 T41-180X2.0X22.2MM PC 100 10.5/11 37.5*19*13.2
FSC2301622 T41-230X1.6X22.2MM PC 50 8/9 24*24*11.7
FSC2302022 T41-230X2.0X22.2MM PC 100 18.5/19.5 24*24*25.7

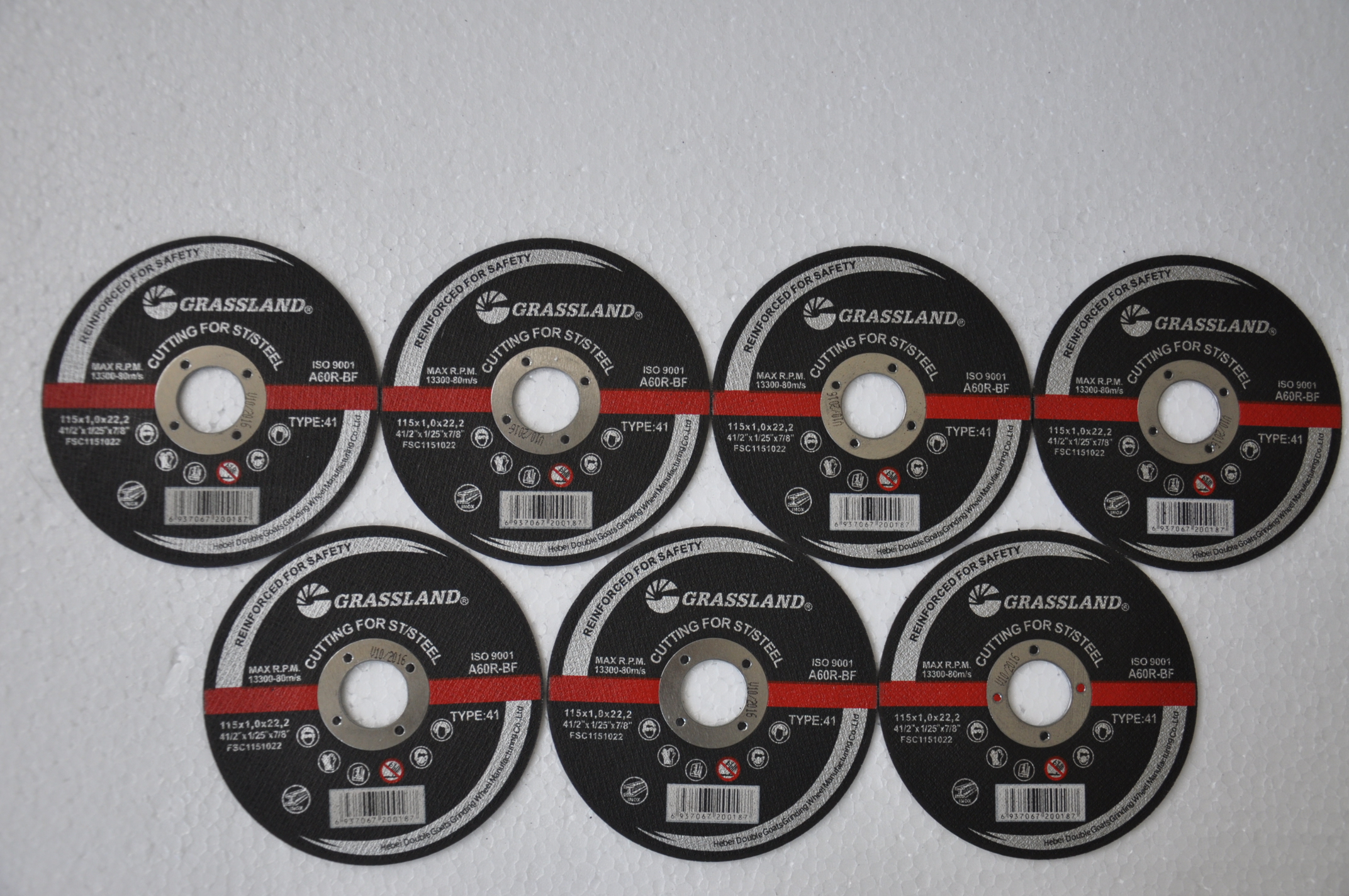

Steel 105 X 1.2 X 16mm Iso9001 4 Inch Metal Cutting Discs

Steel 105 X 1.2 X 16mm Iso9001 4 Inch Metal Cutting Discs

Steel 105 X 1.2 X 16mm Iso9001 4 Inch Metal Cutting Discs

Steel 105 X 1.2 X 16mm Iso9001 4 Inch Metal Cutting Discs

Steel 105 X 1.2 X 16mm Iso9001 4 Inch Metal Cutting Discs
